The catalytic converter is a critical emissions control device, whose performance and durability hinge on the secure and reliable mounting of the fragile ceramic monolith (catalyst substrate) within its metal canister. This mounting is primarily achieved through the use of a high-temperature intumescent fiber mat, commonly referred to as a "mat" or "mounting mat." An improperly designed mat—whether too loose or too tight—can lead to catastrophic failure modes: substrate ejection due to insufficient holding pressure or fracture from excessive compressive stress. This paper outlines a systematic, iterative engineering workflow for designing a fiber mat for a specific catalytic converter application, balancing mechanical, thermal, and material science principles.
1. Introduction: The Role of the Mounting Mat
The mounting mat serves multiple essential functions:
Mechanical Mounting: Provides a resilient, pressure-maintaining "cushion" that holds the substrate firmly in place, absorbing vibrations and shock from the vehicle.
Thermal Insulation: Protects the metal canister from excessive exhaust gas temperatures and minimizes heat loss to ensure rapid "light-off" of the catalyst.
Gas Sealing: Prevents exhaust gases from bypassing the substrate through the annulus (gap between substrate and canister), ensuring optimal conversion efficiency.
Stress Absorption: Accommodates differential thermal expansion between the ceramic substrate (low CTE) and the metal canister (high CTE).
A successful design ensures the mat maintains adequate Gasket Pressure (also called Holding Pressure or Surface Pressure) on the substrate throughout the entire operating envelope.
2. Foundational Design Inputs
The design process begins with precisely defined geometric and operational parameters:
A. Substrate Dimensions: Outer diameter ( D_s), length ( L_s), and cell density (influencing weight).
B. Canister Dimensions: Inner diameter ( D_c) of the shell at the mat location. The critical parameter is the nominal Annuar Gap ( G): G = (D_c - D_s) / 2
C. Operating Temperature Profile: Expected steady-state temperature range and maximum transient temperature (e.g., during engine misfire or regeneration events).
D. Exhaust Gas Pressure Pulsations: Amplitude and frequency of pressure waves in the exhaust system.
E. Vehicle/Vibration Environment: Engine and road-induced vibration spectra (g-forces).
3. The Core Design Calculation Workflow
The design is an iterative process centered on managing the mat's density, which directly controls pressure. Step 1: Target Gasket Pressure Calculation The minimum required pressure ( P_min) must counteract forces attempting to displace the substrate. These include:
Backpressure Force:F_bp = ΔP * (π * D_s² / 4), where ΔPis the pressure drop across the substrate.
Inertial/Vibration Force:F_vib = m_s * a, where m_sis substrate mass and ais the design acceleration (e.g., 50g for heavy-duty applications).
A safety factor (SF) of 1.5 to 3 is typically applied. P_min = (F_bp + F_vib) * SF / (π * D_s * L_s)
Step 2: Determining Initial Mat Thickness and Density
The as-installed mat thickness (T_installed) is equal to the annular gap G.
The mat is compressed during canning. The % Compression is defined as: %Compression = (1 - (T_installed / T_uncompressed)) * 100 Where T_uncompressedis the mat's lofted thickness before compression.
The key material property is the Pressure-Density Curve, provided by mat suppliers (e.g., 3M, Unifrax). This curve shows the pressure generated at a given temperature for a specific mat density.
Iterative Process:
Select a candidate mat type (e.g., standard intumescent, low-pressure, high-temperature).
For the target operating temperature, use the pressure-density curve.
Find the mat density (ρ_mat) required to generate at least P_minat the installed state. Density is linked to compression: ρ_installed = ρ_uncompressed / (1 - %Compression)
Back-calculate the required T_uncompressedto achieve the correct ρ_installedwhen compressed into gap G.

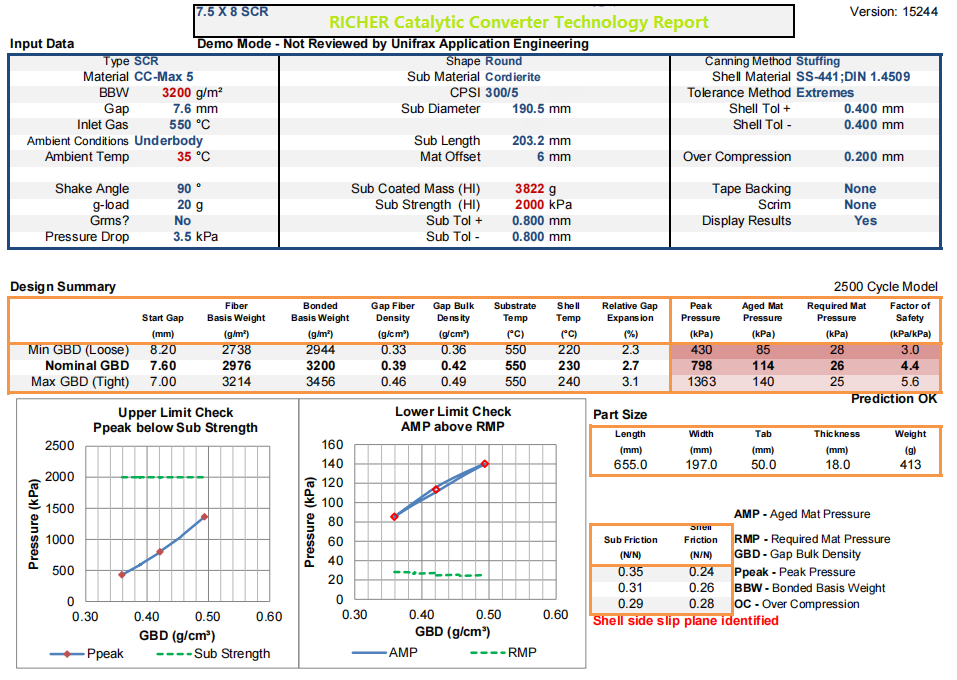

Step 3: Verifying Against Critical Limits The design must be checked against two failure boundaries:
Upper Limit (Crushing): The mat must not exert pressure exceeding the Substrate Isostatic Strength (MOR - Modulus of Rupture), typically 3-8 MPa for cordierite, higher for silicon carbide. Apply the pressure-density curve at the minimum assembly gap (tolerance worst-case).
Lower Limit (Slippage/Ejection): The mat must maintain P_minat the maximum operating temperature and maximum assembly gap. Intumescent mats expand with heat, increasing pressure, but this effect must be quantified.
Step 4: Accounting for Intumescence Standard mats contain vermiculite-based particles that expand significantly at high temperatures (~600-950°C). This expansion:
Benefit: Compensates for thermal contraction of the metal canister and mat fiber shrinkage, maintaining pressure at high temperatures.
Design Consideration: The "swell" must be modeled. Over-expansion at extreme temperatures can create excessive pressure. Designs for very high temperatures may use "low-pressure" or "non-intumescent" mats (e.g., polycrystalline alumina fiber).
4. Key Design Verification & Validation Methods
Canning Force Analysis: Monitor the force-displacement curve during the canning process. The final force correlates with initial holding pressure.
Hot Vibration Testing: Subject the canned converter to simulated exhaust temperatures and vibration profiles to validate long-term durability.
Thermal Cycling Test: Cycle the unit between ambient and high temperature to check for pressure retention and substrate movement.
Post-Mortem Analysis: After testing, inspect mat fiber degradation, intumescent particle condition, and substrate surface for stress marks.
5. Conclusion
Designing a catalytic converter fiber mat is a precision engineering task that translates application-specific inputs into a material specification. It is not merely "filling a gap," but a calculated balance of forces. The core of the process lies in:
Accurately defining the mechanical and thermal boundary conditions.
Iteratively applying the mat manufacturer's pressure-density-temperature performance data.
Rigorously checking the design against the substrate's strength limits and the application's holding force requirements.
Validating the design through physical testing.
A methodical approach following this workflow minimizes the risks of field failure, ensuring the catalytic converter meets its mandated lifespan and performance goals under real-world driving conditions.
